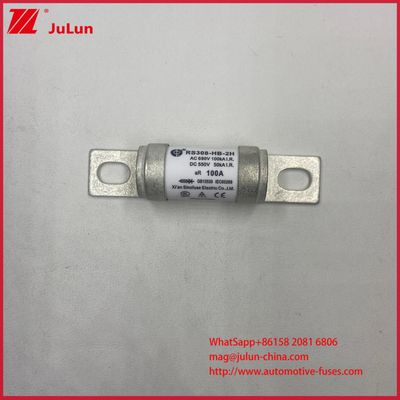

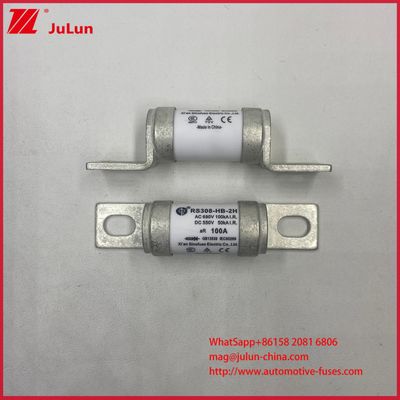

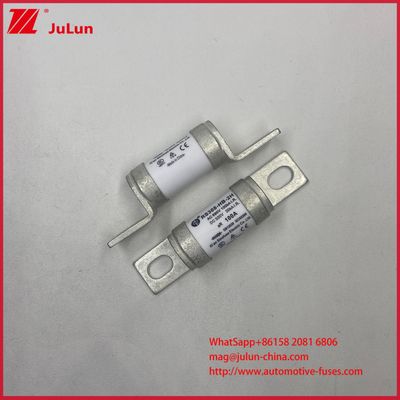

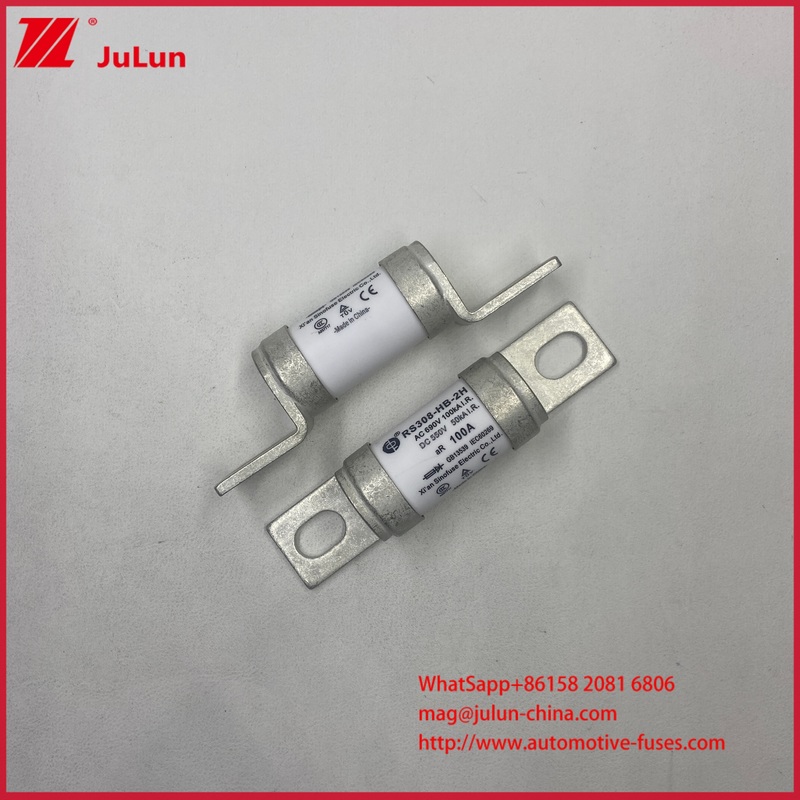

Fuses For Partial Range Protection Of Round Pipe Bolt Connection Type RS308-HB 200A 550VDC
Detail produk:
| Tempat asal: | Tiongkok |
| Nama merek: | SINO FUSE |
| Sertifikasi: | UL |
| Nomor model: | RS308-HB-2H 63A 80A |
Syarat-syarat pembayaran & pengiriman:
| Minimum Order Quantity: | 10 |
|---|---|
| Harga: | 5~6USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Syarat-syarat pembayaran: | T/T, T/T |
| Supply Ability: | 1000K/PCS |
|
Informasi Detail |
|||
| Nilai Saat Ini: | 10A Sampai 710A | Baut pemasangan: | M6 M8 |
|---|---|---|---|
| Metode pemasangan: | sekrup baut | Bahan: | Keramik Tembaga Perak Kuarsa Pasir Emas |
| Fitur: | Ukuran kecil dengan nilai arus tinggi untuk perlindungan sirkuit pendek | Kapasitas yang melanggar: | AC100KA@COSφ0.2,DC50KA@L/ R≤10ms |
| Kinerja merujuk: | IEC60269, Dan Keandalan Lingkungan Sesuai Dengan ISO8820, JASO D622, Dan GB/T31465 | Produk aplikasi: | Sistem Traksi EV, Konversi Daya, Penyimpanan Energi, Pengecas Mobil Dan Lain-lain |
| Menyoroti: | ceramic automotive fuses for round pipe,RS308-HB bolt connection fuses,200A 550VDC ceramic fuses |
||
Deskripsi Produk
Fuses For Partial Range Protection Of Round Pipe Bolt Connection Type RS308-HB 200A 550VDC
In summary, the Ceramic Automotive Fuses combine compactness with high current capacity, robust ceramic construction, and dependable bolt-connected fast fuse mounting, making them an excellent choice for modern automotive electrical protection. Their compliance with international performance and environmental standards assures users of their quality and reliability. Whether for passenger cars, commercial vehicles, or specialized automotive equipment, these Ceramic Car Fuses provide effective and durable short circuit protection, helping to maintain electrical system integrity and vehicle safety.
Technical Parameters
| Performance Standard | IEC60269 |
|---|---|
| Environmental Reliability | Complies with ISO8820, JASO D622, and GB/T31465 |
| Rated Voltage | AC690V / DC550V |
| Installation Bolt | M6, M8 |
| Rated Current | 10A to 710A |
| Application | EV Traction System, Power Conversion, Energy Storage, Car Charger, and etc. |
| Mounting Method | Screw Bolt |
| Installation Mode | Recommended Tight Torque |
| Breaking Capacity | AC 100KA @ COSφ 0.2, DC 50KA @ L/R ≤ 10ms |
| Feature | Small Size with High Current Rating for Short Circuit Protection |
| Usage Category | AR |
