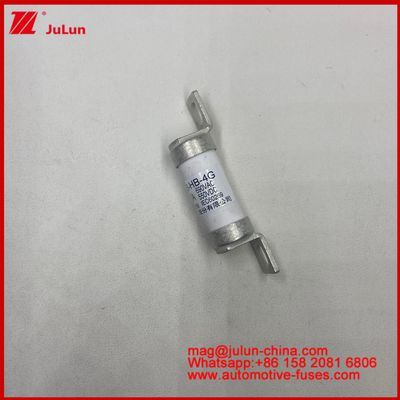

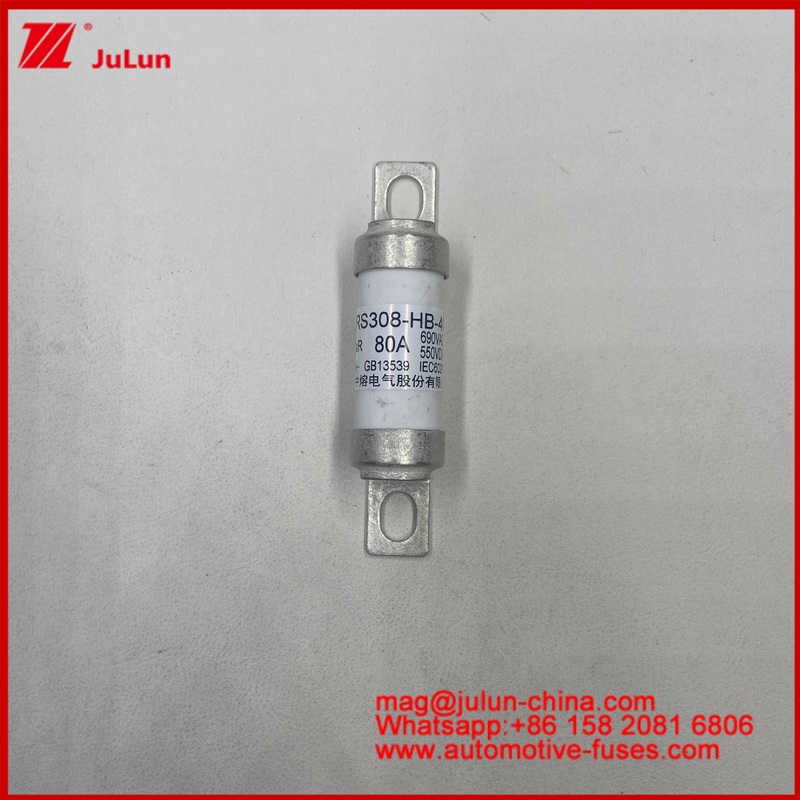

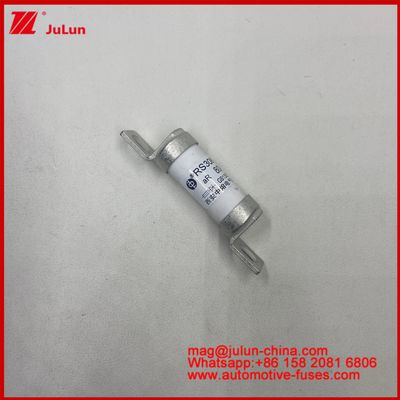

RS308-HB 10A 16A 20A 25A 32A 40A 690VAC/550VDC Ceramic Installation bolt M6 Car Fuses for Protection Against Short Circuit in Energy Storage High Current Rating
Detail produk:
| Tempat asal: | Tiongkok |
| Nama merek: | SINO FUSE |
| Sertifikasi: | UL ISO8820、JASO D622、GB/T31465 IEC60269 |
| Nomor model: | RS308-HB-4G |
Syarat-syarat pembayaran & pengiriman:
| Minimum Order Quantity: | 10 |
|---|---|
| Harga: | 3.5~5USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
Informasi Detail |
|||
| Kapasitas yang melanggar: | AC100KA@COSφ0.2,DC50KA@L/ R≤10ms | Kategori penggunaan: | AR |
|---|---|---|---|
| Mode Instalasi: | Torsi ketat yang direkomendasikan | Fitur: | Ukuran kecil dengan nilai arus tinggi untuk perlindungan sirkuit pendek |
| Kinerja merujuk: | IEC60269, Dan Keandalan Lingkungan Sesuai Dengan ISO8820, JASO D622, Dan GB/T31465 | Produk aplikasi: | Sistem Traksi EV, Konversi Daya, Penyimpanan Energi, Pengecas Mobil Dan Lain-lain |
| Bahan: | Keramik Tembaga Perak Kuarsa Pasir Emas | Metode pemasangan: | sekrup baut |
| Menyoroti: | ceramic car fuses high current,automotive fuses short circuit protection,energy storage fuses with M6 bolt |
||
Deskripsi Produk
RS308-HB 10A 16A 20A 25A 32A 40A 690VAC/550VDC Ceramic Installation bolt M6 Car Fuses for Protection Against Short Circuit in Energy Storage High Current Rating
Product Features
- Product Name: Ceramic Automotive Fuses
- Installation Bolt: M6, M8 for secure mounting
- Material Composition: Ceramic, Copper, Silver, Quartz Sand, and Gold
- Feature: Small size with high current rating for effective short circuit protection
- Rated Voltage: AC 690V / DC 550V
- Mounting Method: Screw bolt installation
- Ideal for use in Automotive Components and Chargers
- Reliable Ceramic Vehicle Fuses designed for durability and safety
Technical Parameters
| Breaking capacity | AC100KA@COSφ0.2, DC50KA@L/R≤10ms |
| Application product | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. |
| Performance standard | IEC60269; Environmental Reliability Complies With ISO8820, JASO D622, And GB/T31465 |
| Rated voltage | AC690V/DC550V |
| Feature | Small Size With High Current Rating For Short Circuit Protection |
| Installation mode | Recommended Tight Torque |
| Material | Ceramic, Copper, Silver, Quartz Sand, Gold |
| Rated current | 10A To 710A |
| Mounting method | SCREW BOLT |
| Usage category | AR |
This Ceramic Automotive Fuse is designed for electric vehicles drive the power system, including EV traction systems and chargers, providing reliable short circuit protection in compact sizes.
Frequently Asked Questions
Q1: What brand manufactures these Ceramic Automotive Fuses?
A1: These Ceramic Automotive Fuses are manufactured by the brand GRL.
Q2: What are the available model numbers for these fuses?
A2: The available model numbers are NH000 125A, NH00 160A, and NH1 225A.
Q3: Where are these Ceramic Automotive Fuses produced?
A3: These fuses are made in China.
Q4: What certifications do these fuses have?
A4: The Ceramic Automotive Fuses are UL certified.
Q5: What is the minimum order quantity and price range for these fuses?
A5: The minimum order quantity is 10 pieces, with prices ranging from 25 to 45 USD per piece.
Q6: How are the fuses packaged and what is the delivery time?
A6: The fuses are packaged in cartons, and the typical delivery time is 2 to 3 weeks.
Q7: What payment terms are accepted for purchasing these fuses?
A7: Payment is accepted via T-T (Telegraphic Transfer).
Q8: What is the supply ability of these Ceramic Automotive Fuses?
A8: The supply ability is 1,000,000 pieces.
